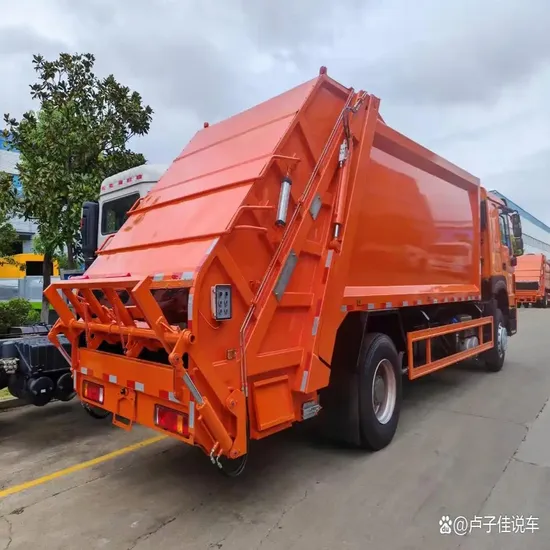

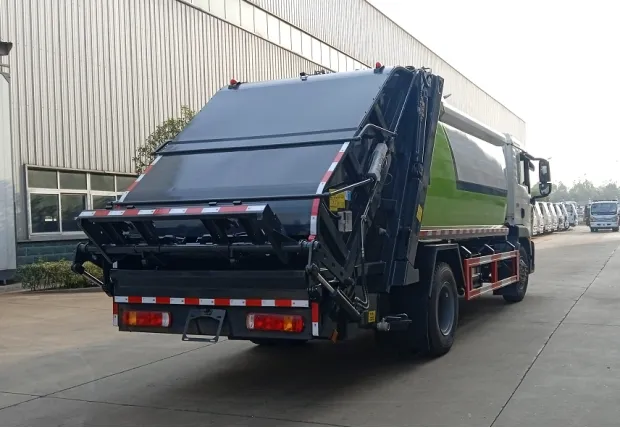

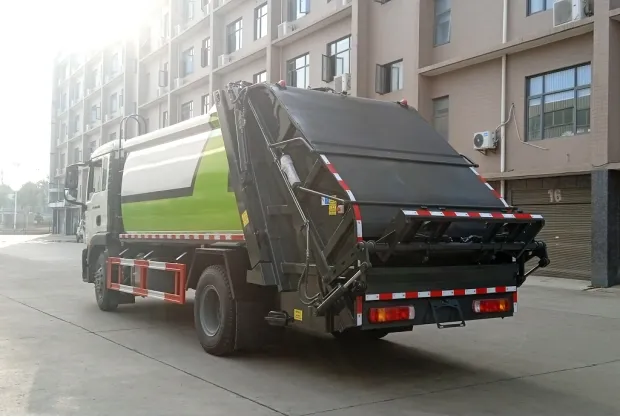

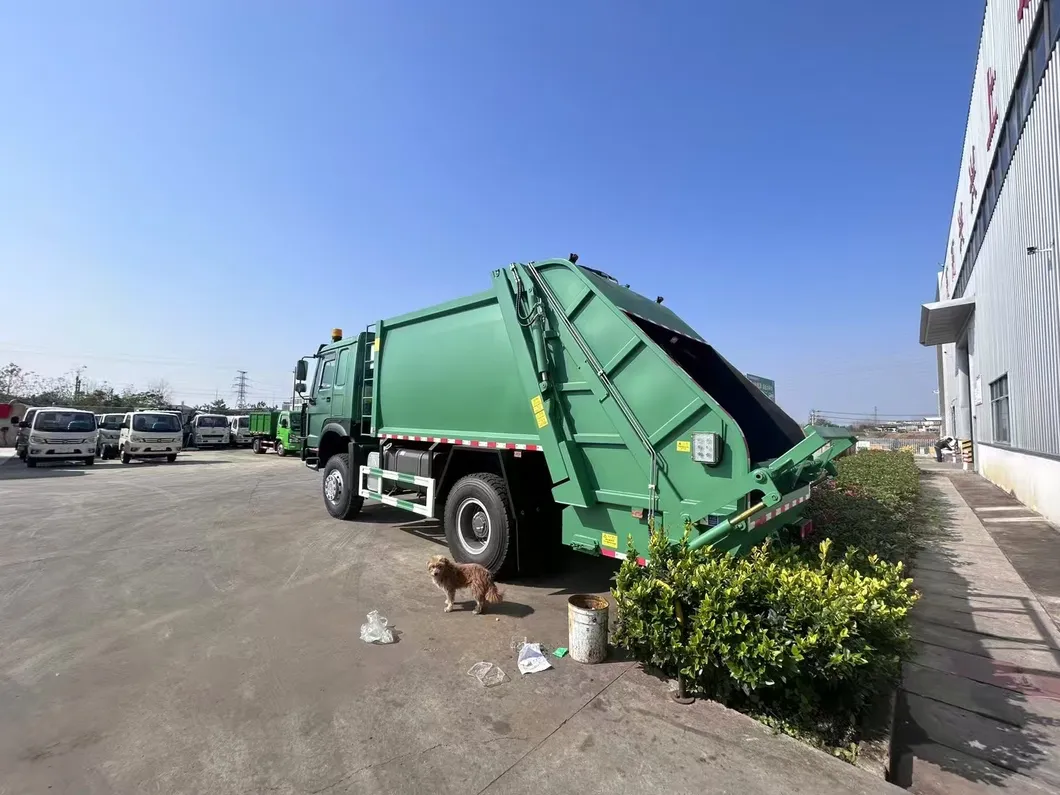

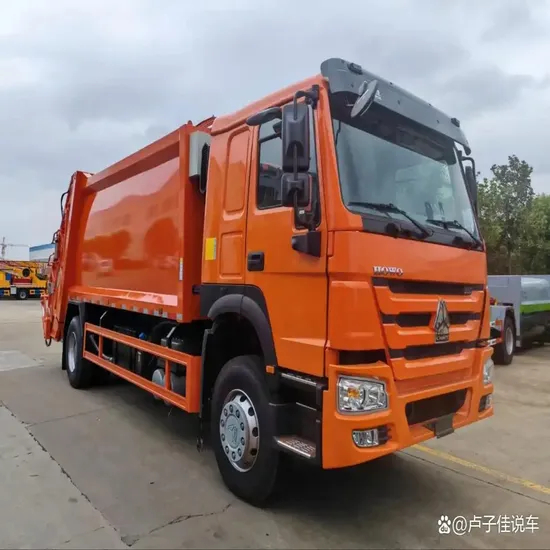

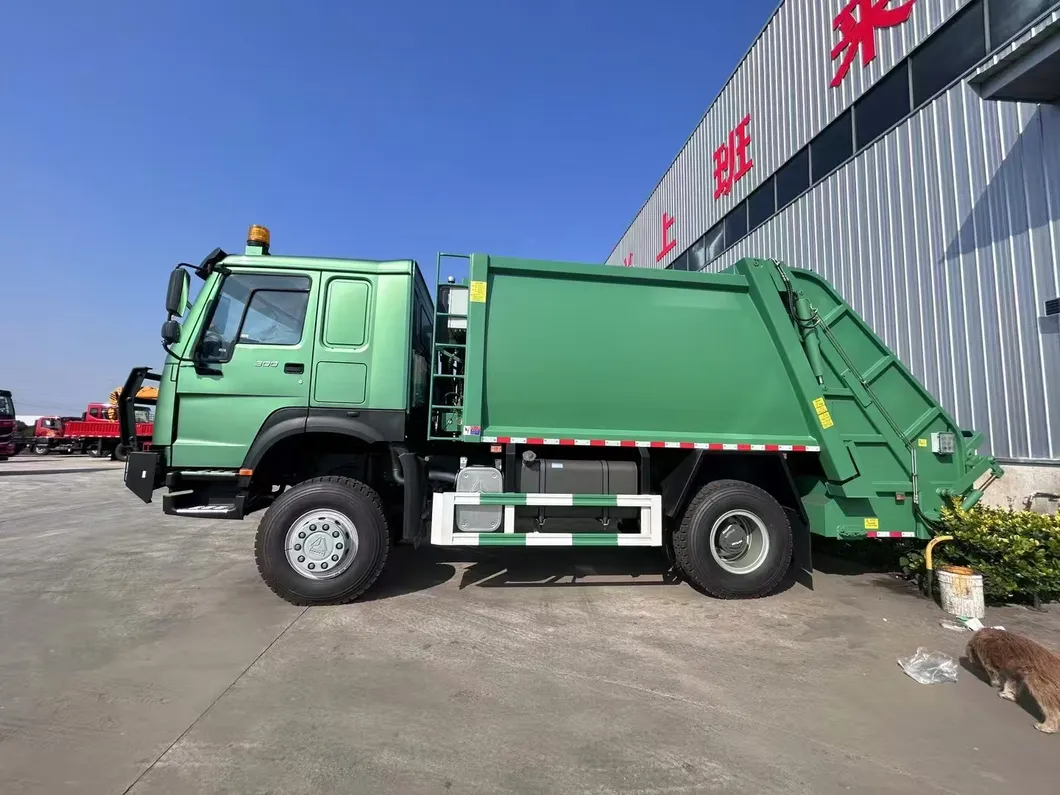

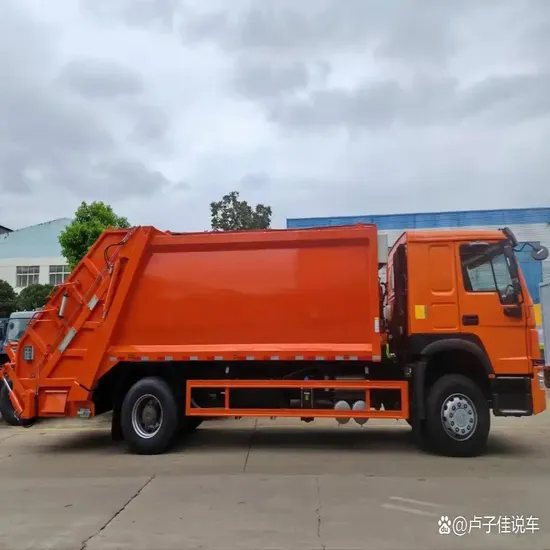

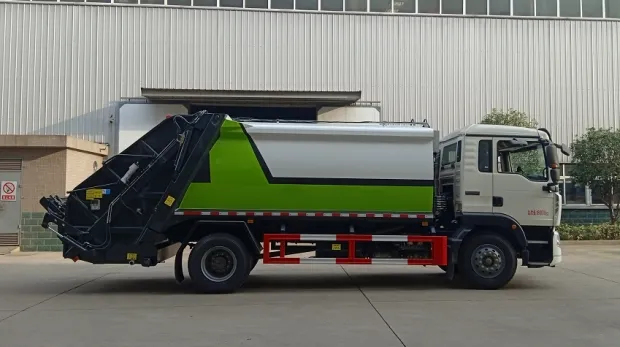

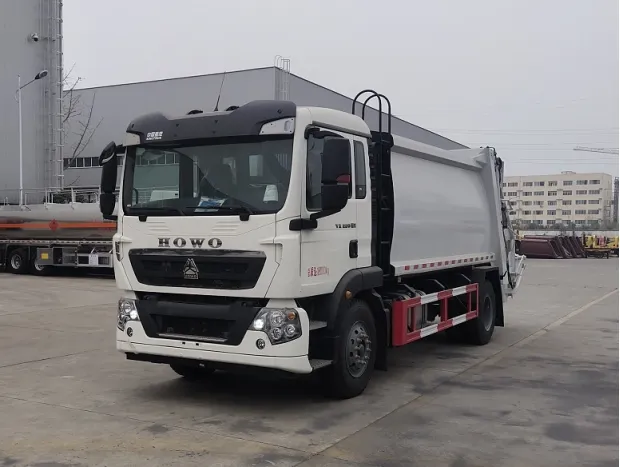

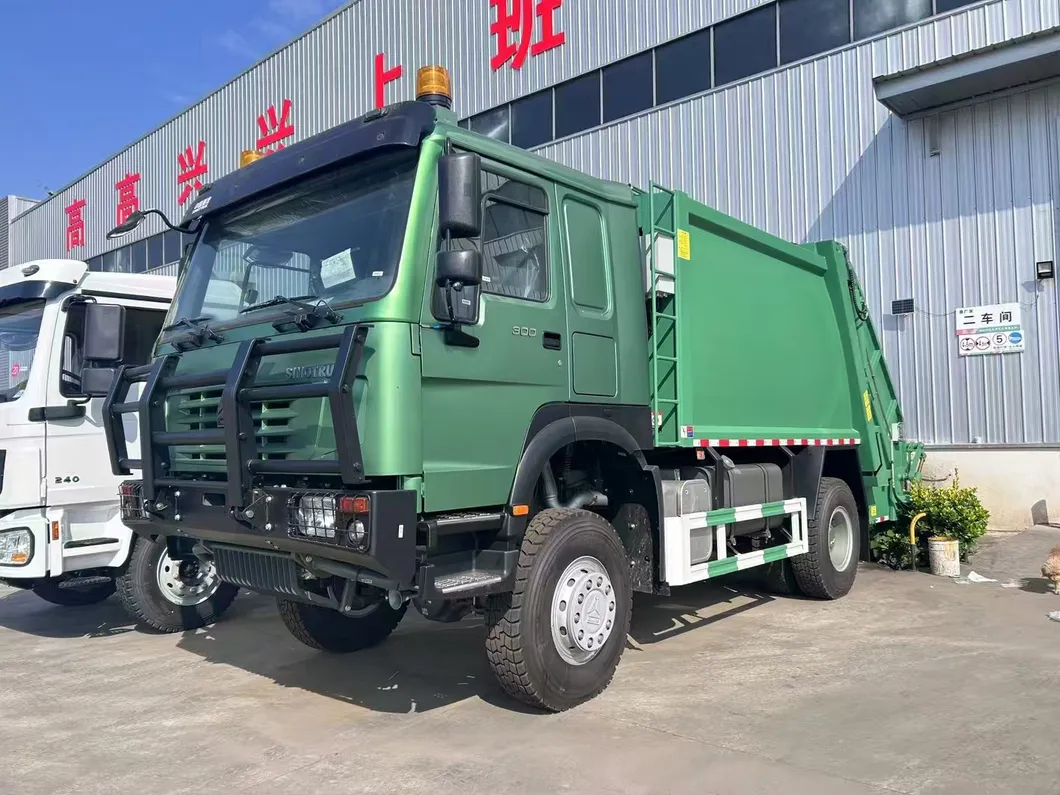

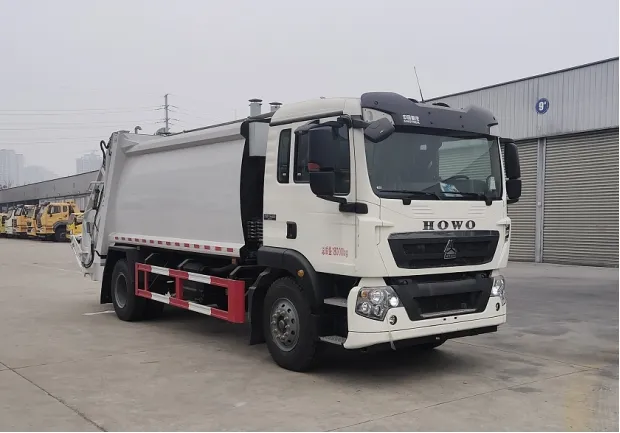

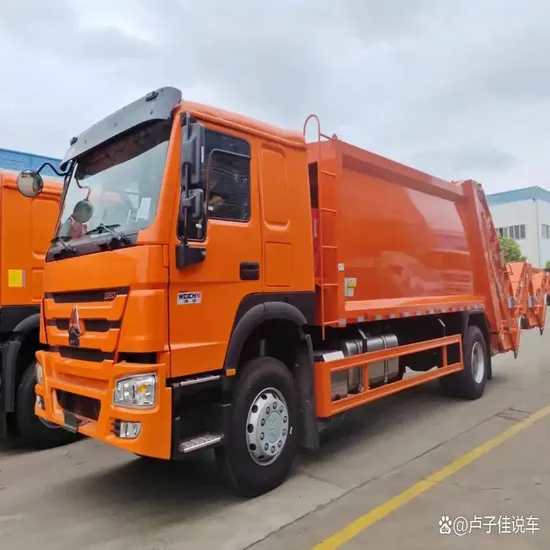

4X2 15000L 15CBM Waste Collector Compactor Garbage Truck Our versatile garbage compactor truck, also known as a waste compactor truck, garbage compactor, trash compactor, refuse collection truck, compactor garbage truck, rubbish truck, bin wagon, dustcart, bin lorry, or waste collection vehicle, is expertly crafted to efficiently collect and transport municipal solid waste, ensuring a cleaner and more sustainable environment. Engineered with precision, the garbage compactor truck features an advanced hermitical garbage box, combined with a powerful hydraulic system and an intuitive operating system. These components work in harmony to compress waste, reducing bulky items and maximizing load capacity, enabling more waste to be transported with each trip. Ingeniously designed, the truck ensures that dirty liquids are collected in a waste sink, effectively preventing any risk of repollution. Upon reaching its destination, the truck facilitates the complete and efficient dumping of garbage, providing an ideal solution for modern solid waste collection needs. Introducing the Heavy Duty Truck HOWO TX compression garbage truck-a groundbreaking rear-mounted compression garbage truck that stands at the pinnacle of innovation. This marvel is the culmination of extensive development, design, and refinement by Hubei Xinzhonglv Special Automobile Co., Ltd., drawing on the strengths of both domestic and international counterparts. Its upper structure encompasses a sealed garbage bin, loader, shovel, and a sophisticated hydraulic transmission system, all governed by an advanced electrical control system. The harmonious integration of electrical and hydraulic technologies, coupled with a mechanical, electrical, and hydraulic automatic control system, empowers specialized components such as carriages, fillers, and shovels to seamlessly execute garbage pouring, crushing, flattening, and robust loading. This ensures garbage is compacted and efficiently pushed into carriages. With its captivating design, superior performance, and state-of-the-art handling, the truck's comprehensive capabilities meet and exceed the advanced standards of domestic products. This cutting-edge vehicle is perfectly suited for the collection and transportation of bucket, bagged, and bulk household waste across urban residential areas, communities, large factories, mines, and governmental institutions. Its flexible design offers multiple optional bucket (hopper) mechanisms, catering to diverse garbage collection methods tailored for various user needs.
Product Parameters
Truck body structure
| Color | As requirements |
| Volume | 3.5m³ |
| Body shape | Curved box |
| Ways of Loading | Rear Loading |
| Body material and thickness | Material: Q345 Carbon steel Thickness of side plate: 4mm Thickness of bottom plate: 4mm |
| Dozer | Material: Q345 manganese steel |
| Filler | Material: Q345 manganese steel |
| Flip frame | Material: Q345 manganese steel |
| Hydraulic system | Dozer cylinder | 1 piece |
| Scraper cylinder | 2 piece |
| Skateboard cylinder | 2 piece |
| Rear flip cylinder | 2 piece |
| Lifting cylinder | 2 piece |
| Hydraulic tank | 90L 1 piece |
| Hydraulic tubing | Black rubber steel wire hose and steel oil pipe |
| Hydraulic oil pump | Hefei Wanye Oil Pump |
| power takeoff | Pava |
| Multi-way valve | Yangzhou Zhongmei multi-way valve, balance valve |
| System working pressure | 18MPa |
| Manual operation | 1 set on the rear side of the cab |
| Electric control system | operating system | Taiwan Yonghong imported PLC electric control system and manual operation device |
| Electronic control operation button | 1 set at the left and right of the rear of the car body (2 sets total) |
Compression parameters
| Garbage density after compression | 0.5-0.8t/m3 |
| Loading time once | Less than 25S |
| Unloading operation time | Less than 35s |
| Compression ratio | 1:2.5 or more |
